RTMP Destinations

Connecting Instagram to Switchboard

Ready to take your Instagram Live broadcasts to the next level? This comprehensive guide walks you through connecting Instagram's Live Producer feature to Switchboard, so you can multistream professional-quality content to Instagram and other platforms at the same time.

Last updated 1 day ago

Instagram Live Producer Guide

Instagram Live Producer lets you go live on Instagram using third-party live-streaming software like Switchboard, so you can multistream to Instagram and your other destinations at the same time. Live Producer is available on desktop for professional Instagram accounts; check whether your account has access in Step 1 below.

🎉 Update Nov 9, 2026:

Some Instagram accounts now have access to a persistent stream key. Set it up once, and you can reuse your Instagram Destination in Switchboard for future broadcasts, with no need to generate a new stream key before every live stream. Instagram is rolling this out gradually. See if your account has it →

Instagram Live Streaming Requirements

Read Instagram Live Streaming Requirements:

  1. If you have a professional Instagram account, you can access live streaming through third-party live-streaming apps.

  2. “Only Instagram users who have a public account with 1,000 followers or more will be able to start a Live broadcast.”


Topics covered:

  • Checking access to Instagram Live Producer

  • Getting your Instagram Stream URL and Key (persistent or one-time)

  • Adding Instagram as a Destination in your Switchboard account

  • Multistreaming from Switchboard to Instagram and other destinations

  • Ending the live stream

  • Instagram Live Producer tips, archiving, and recommended settings


Step 1: Check if you have Access to Instagram Live Producer

To check whether you have access, log into your Instagram account on a desktop web browser.

  1. Open instagram.com.

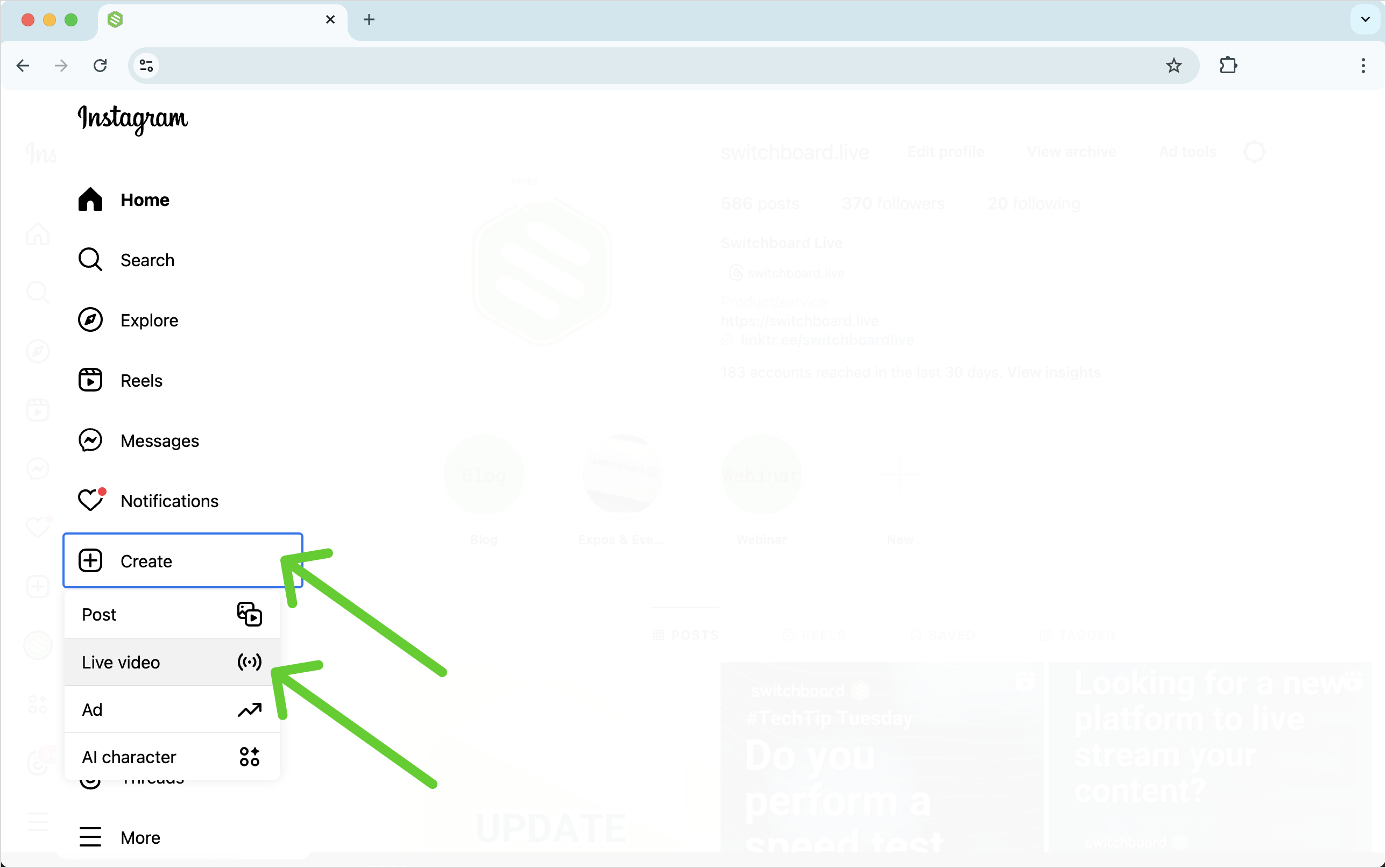

  2. Click the "Create" button (plus the symbol inside a square).

    1. If you see "Live" as an option, 🎉 it means you can access Instagram Live Producer.

  3. Select "Live" from the dropdown menu.

    sbl_DEC_connect_instagram 4.png

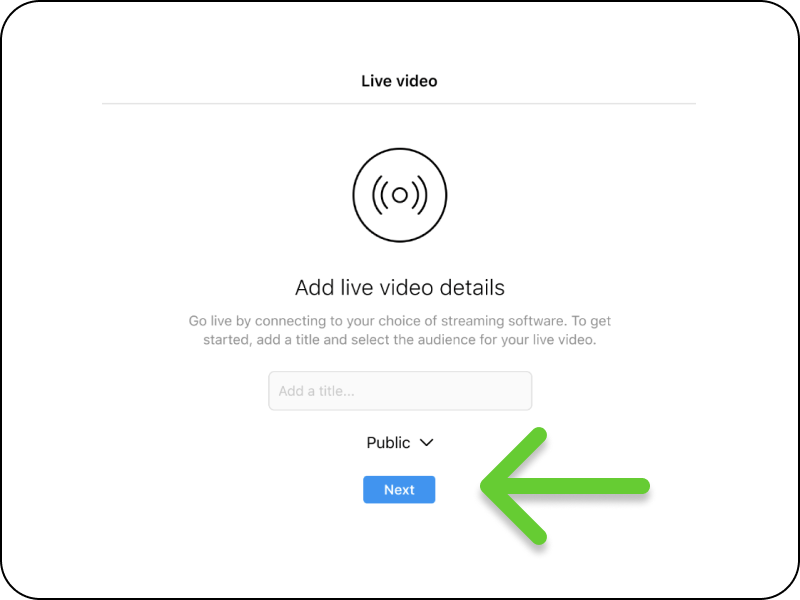

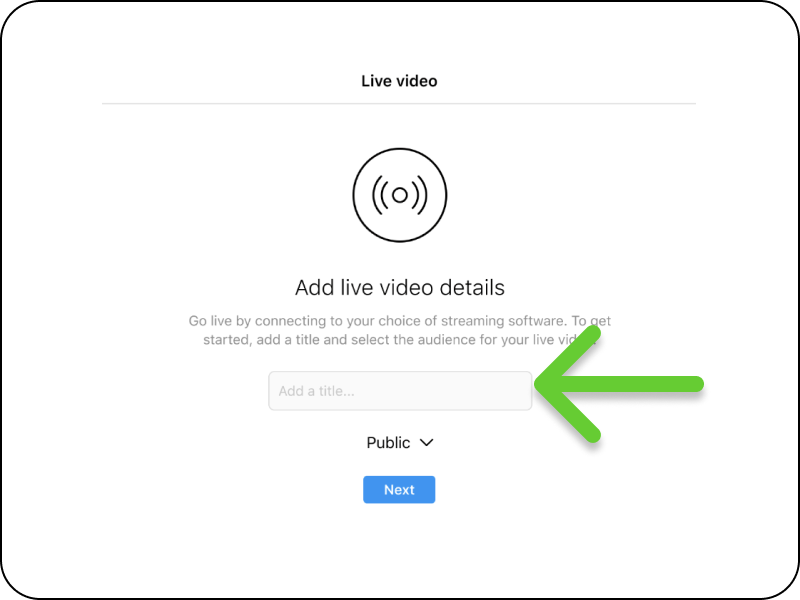

  4. A window will open, letting you create a stream title and choose an audience. Type the stream title in the field.

    Note: Add your live video title here in Instagram. Stream titles set in Switchboard don't publish to custom RTMP destinations like Instagram.

  5. Choose your audience:

       Public: Everyone can view the broadcast.

       Practice: For your eyes only, a great way to test how Instagram Live Producer works.

  6. Click Next.

A new window will open with your Instagram streaming details. What you do next depends on whether your account has a persistent stream key.


Step 2: Get your Instagram Stream URL and Key

On the streaming details screen, look for a Manage Persistent Key button.

See Manage Persistent Key?

  1. Your account has access to a persistent stream key. Follow Option A.

  2. Don't see it? Follow Option B to use a one-time stream key.

Option A: Create a Persistent Stream Key

A persistent stream key lets you save streaming credentials to your Switchboard account for repeat use. This way, you won’t need to generate a new stream key after each live stream event. Here's how to see if your Instagram has a persistent stream key

  1. Click Manage Persistent Key.

  2. Click + Add Persistent Key.

  3. Give the key a name, then click Create Key.

  4. You'll see confirmation that your persistent stream key was created.

  5.  A new window will open with your persistent Stream URL and Stream Key. Copy both.

  6. Next, continue to Step 3: Add Instagram as a Destination in Switchboard.

Option B: Use a One-Time Stream Key

A one-time stream key only works for this broadcast. Keep this browser window open, and plan to get a new key from Instagram Live Producer before each future live stream.

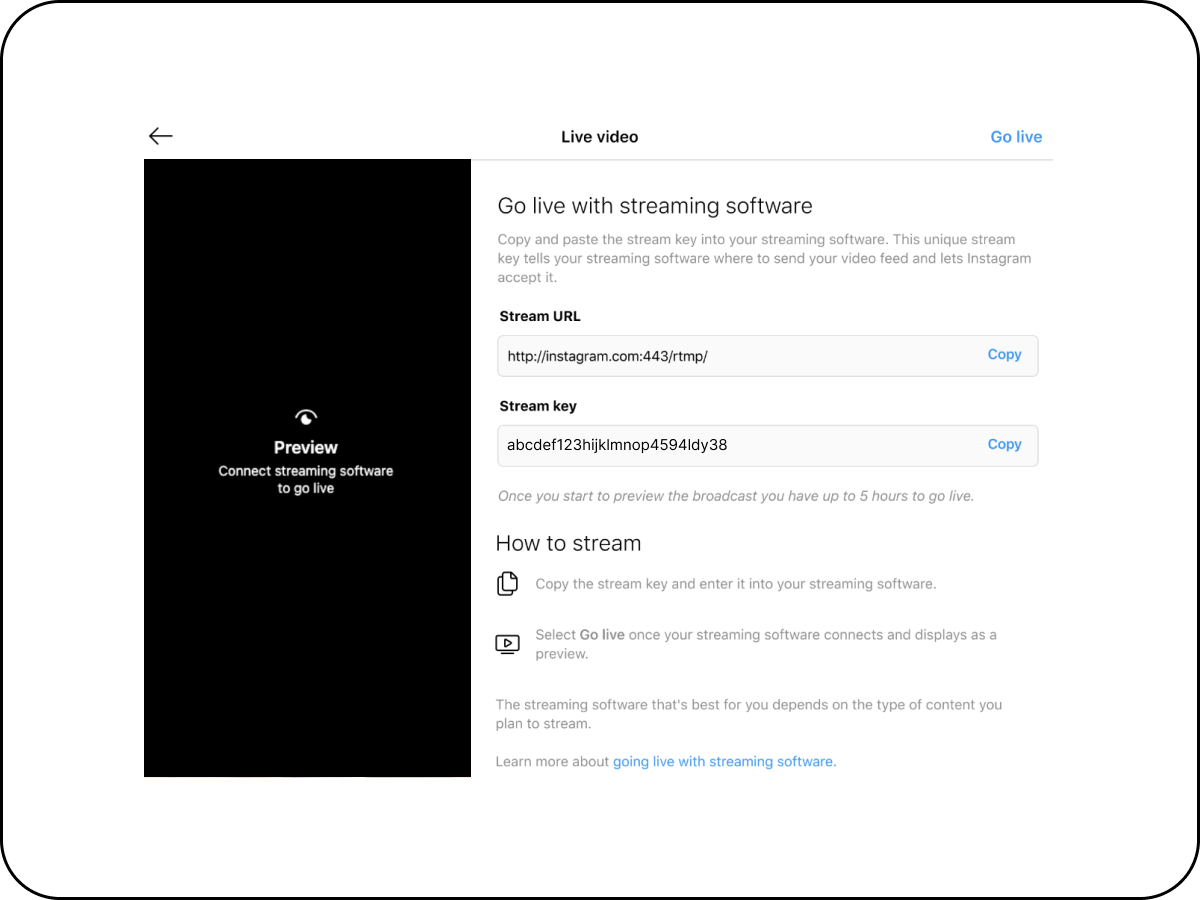

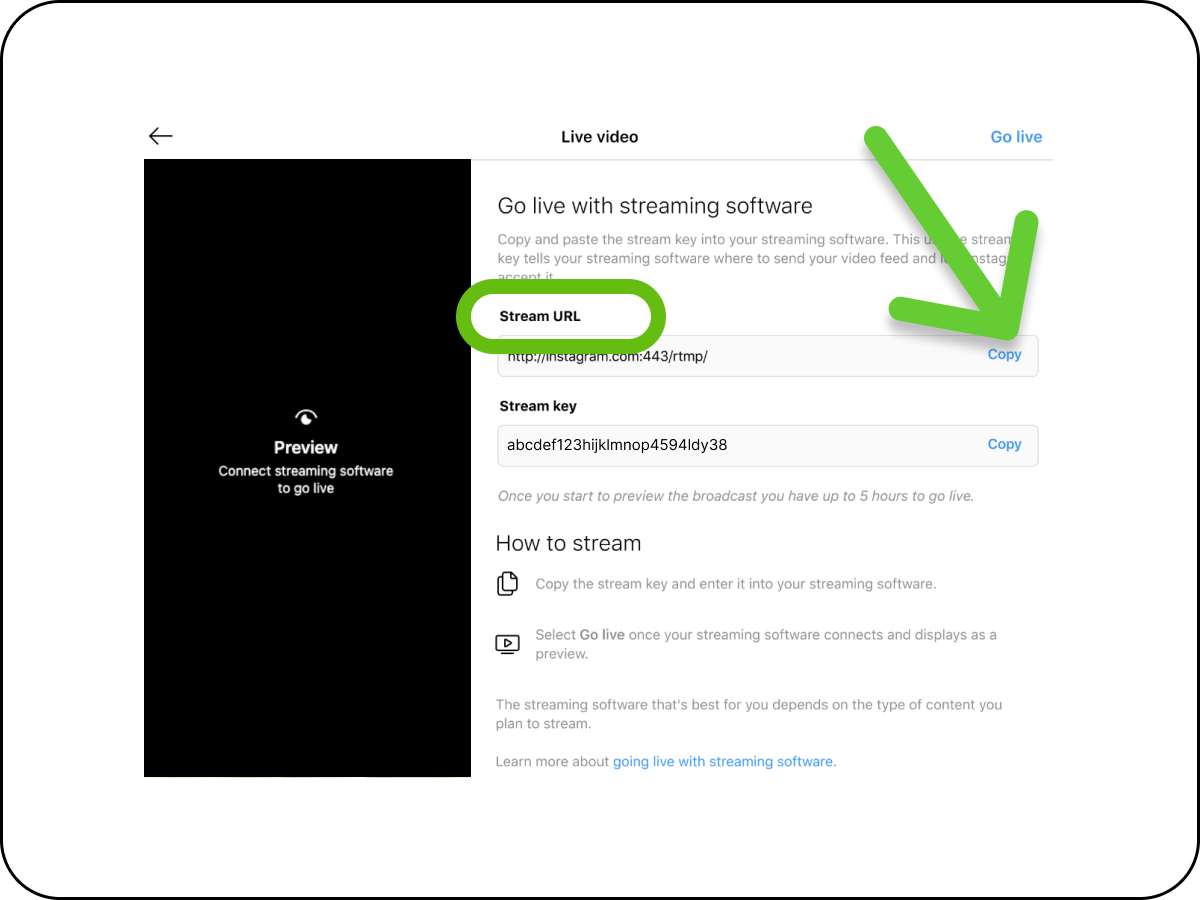

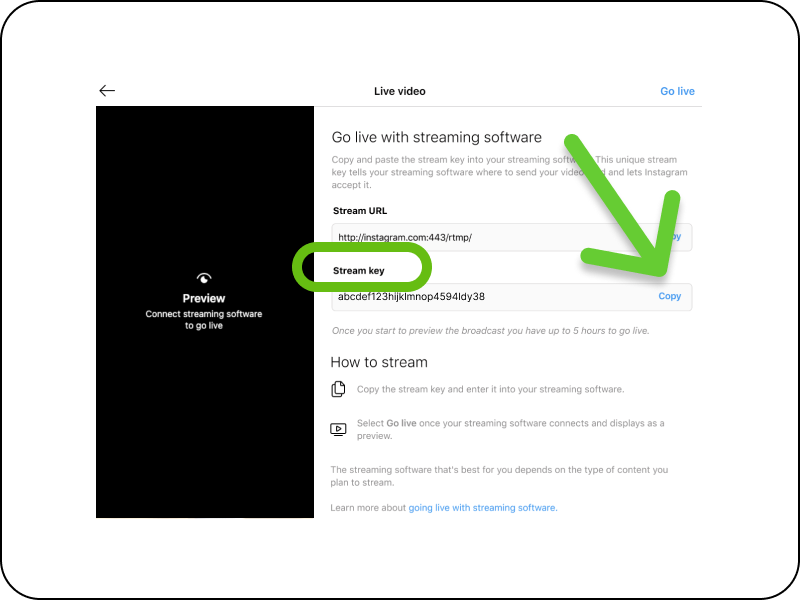

  1. Copy the Stream URL and Stream Key shown on the streaming details screen.

  2. Next, continue to Step 3: Add Instagram as a Destination in Switchboard.

Step 3: Add Instagram as a Destination in Switchboard

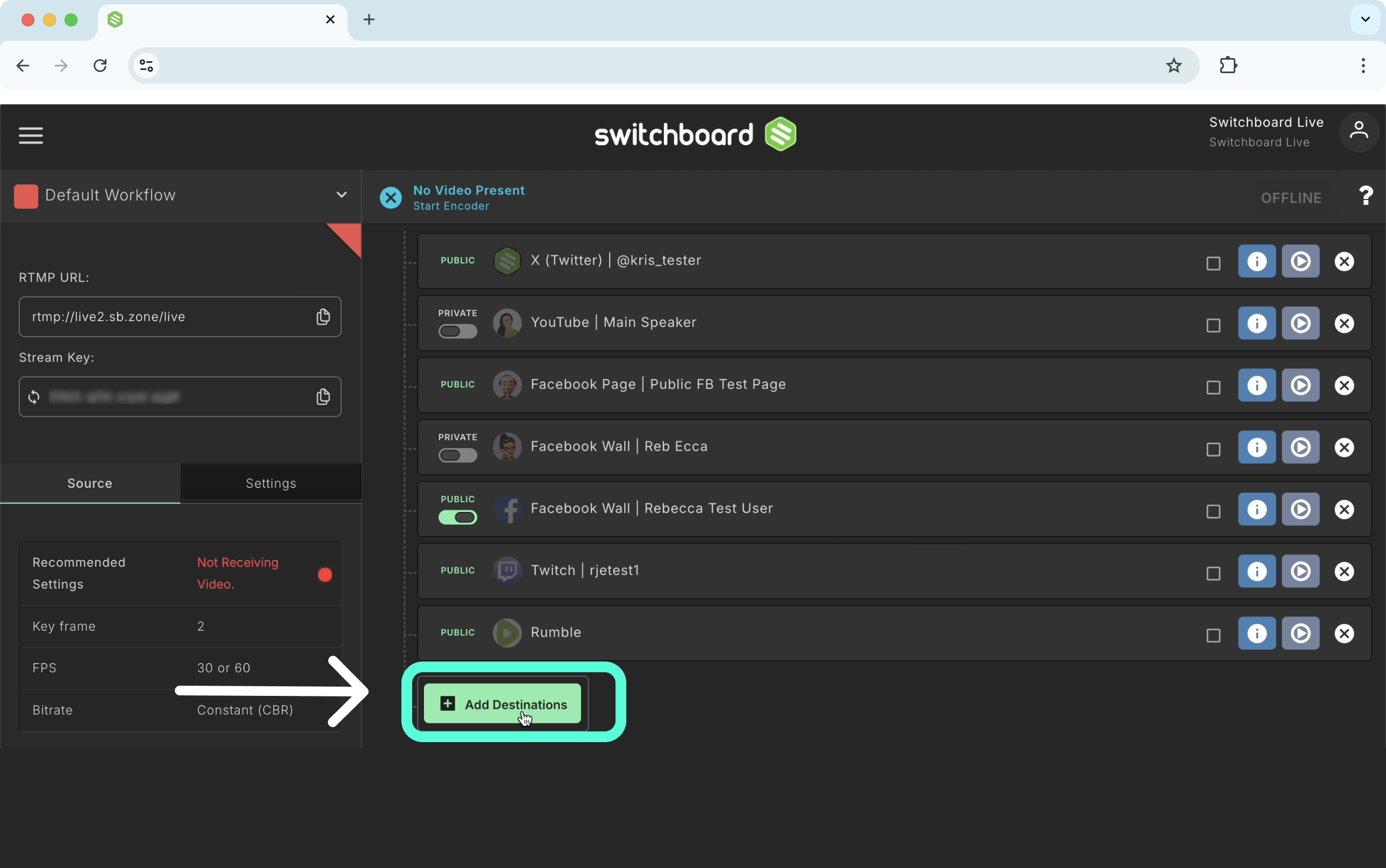

  1. Click the Add Destinations Button at the bottom of the Stream Group.

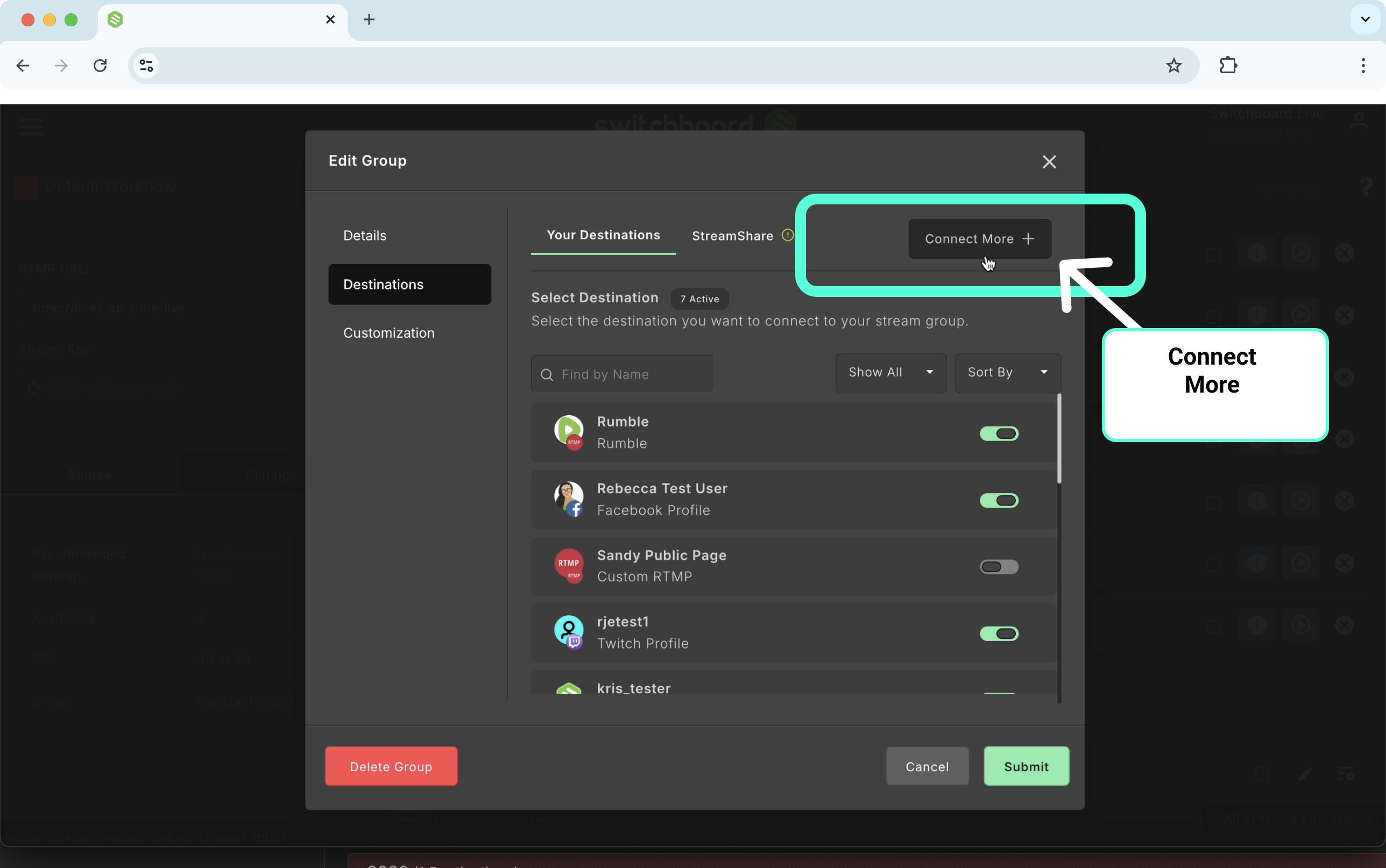

  2. A new window will display. Click Connect More

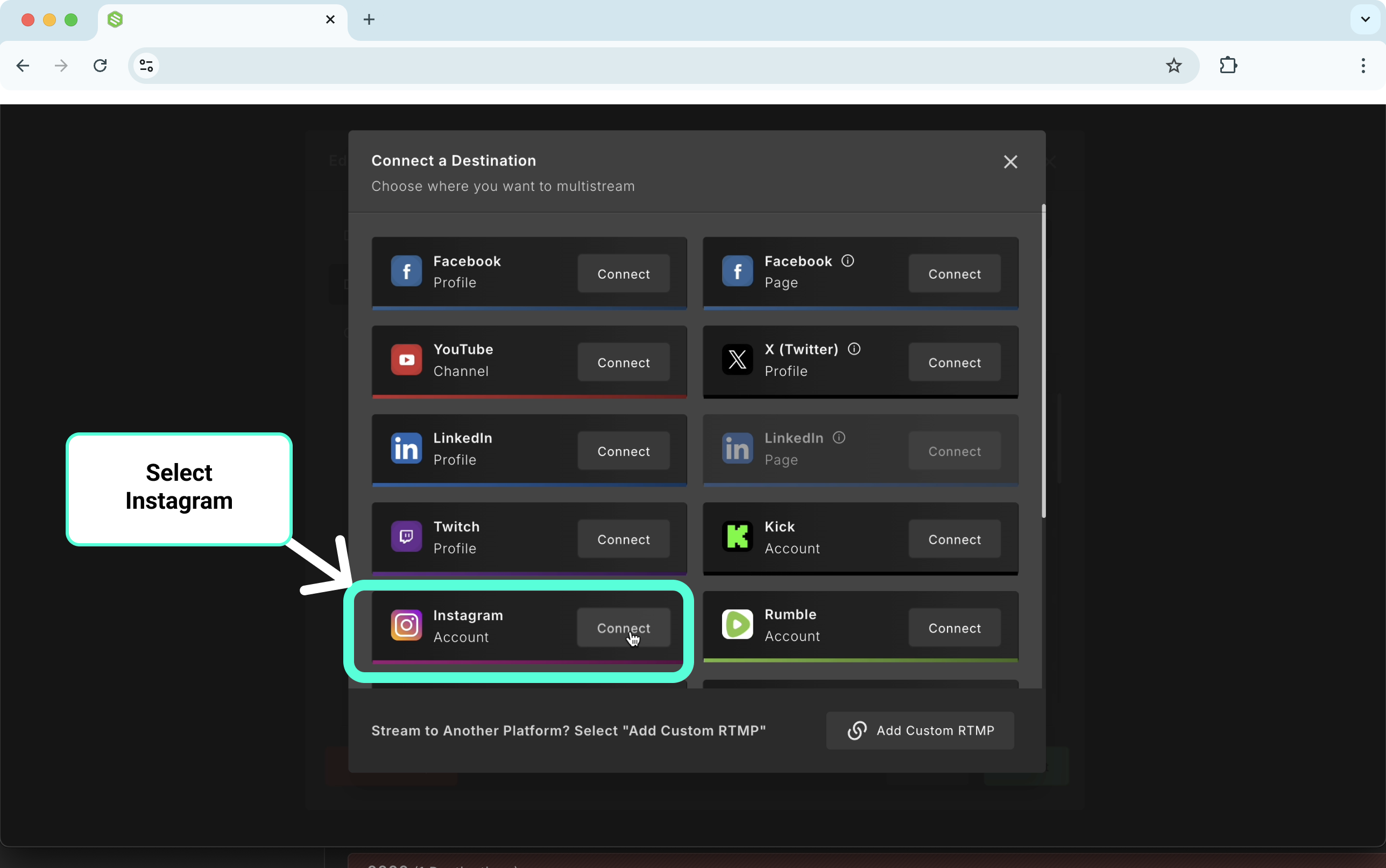

  3. Select Instagram from the menu.

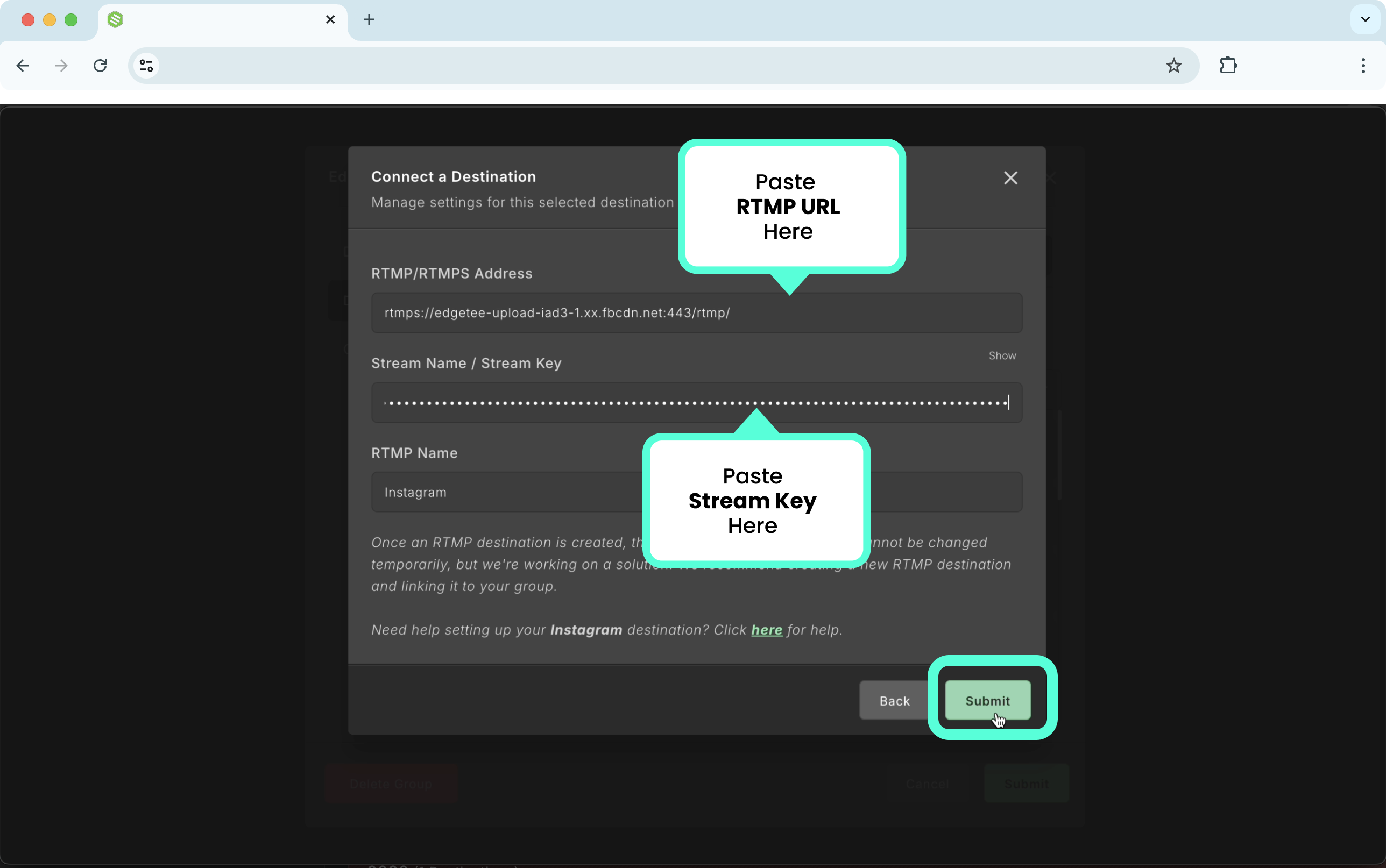

  4. Paste the Instagram Stream URL and Stream Key into the corresponding Switchboard fields.

  5. Click Submit.

The Instagram Destination is now connected to your Switchboard account and automatically added to the Stream Group.

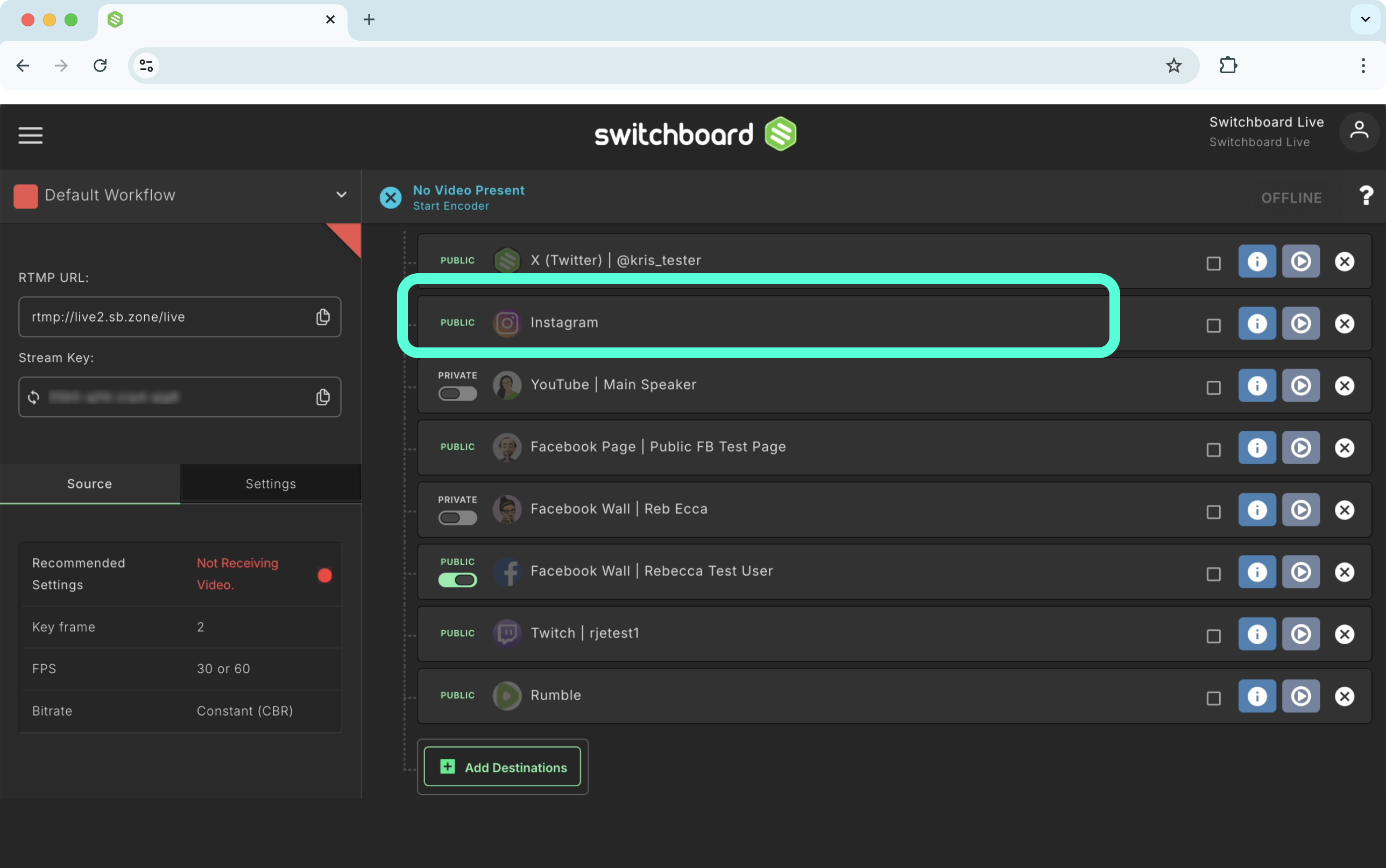

🎉 We can see the Instagram Destination has been successfully added to the group.


💡Using a persistent stream key? Your Instagram Destination stays in your Switchboard account, so you can reuse it for every future broadcast. There's no need to re-add it each time.


Step 4: Live Streaming on Instagram

IMPORTANT: Make sure that going live on Instagram follows this flow.

  1. Open Instagram in the browser

  2. Start Streaming from Switchboard

  3. In the Instagram preview window, confirm the incoming video

  4. Click Go Live in Instagram

Set up the live streaming broadcast and send the video to your Switchboard account.

  • When the video shows on the Switchboard Confidence monitor, start streaming from Switchboard to Instagram

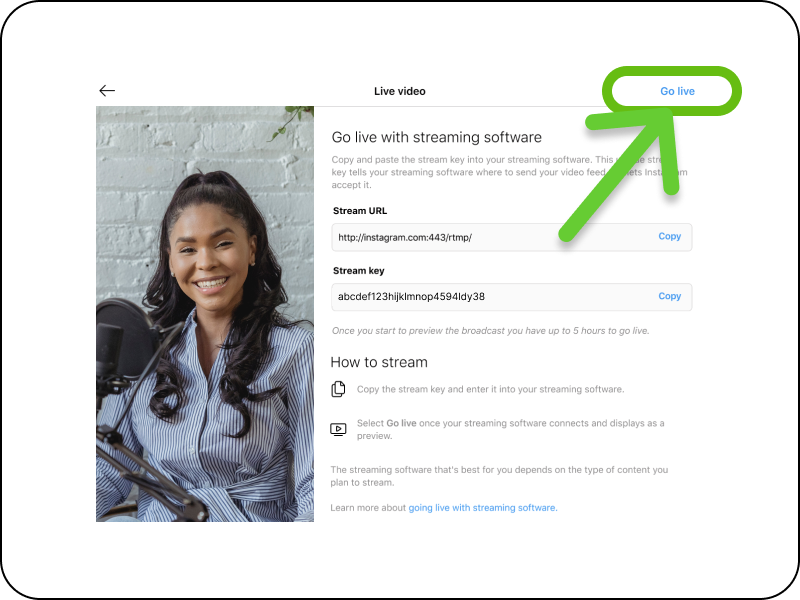

  • Verify the video looks good on the Instagram preview window, then click Go Live.

You'll multistream to all your destinations, including Instagram Live.

👉🏽IMPORTANT: Keep the Instagram Live Browser open during the entire live broadcast; otherwise, the video may end on the Instagram Live producer.


Ending the Live Stream on Instagram

Instagram suggests ending the live stream on their platform first, then on the live streaming software.

  • Click the End Video button in Instagram, then in Switchboard, and finally in your live streaming software.

  • Instagram will ask if you want to delete or keep the live video.

  • Simply close the web browser without selecting any options.

  • Next time you live stream to Instagram, open Instagram Live Producer first.

    • One-time stream key: Copy the new stream key and add it to Switchboard (see Step 3).

    • Persistent stream key: Your Instagram Destination in Switchboard is ready to reuse. No need to copy a new key.


Instagram Live Producer Tips

‼️ Keep the Browser open: Keep the Instagram Live Producer browser open during the live stream; closing it may end the live stream on Instagram.

🔑 Dynamic Instagram Stream Key: Each live broadcast creates a new, unique stream key. To get a new stream key, open Instagram Producer and follow the steps to create a new live broadcast.

‼️ Then, before each broadcast, you'll need to add Instagram as a New Destination in your Switchboard Stream Group.

To do this, click the Add Destinations button -> Connect More -> Select Instagram -> Copy and paste the newly generated Stream URL and Stream Key -> Submit -> Submit.


Archive Live video: Instagram automatically deletes live videos at the end of the broadcast.

Update your Instagram settings to archive the live video so you can access and download it later. Before the live broadcast, enable the Archive Live video feature in the Instagram mobile app.

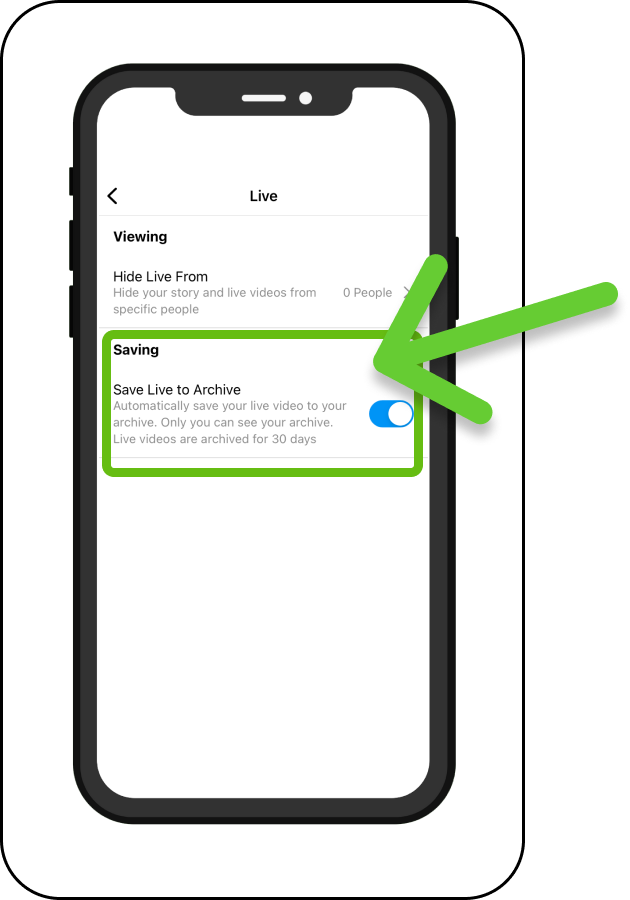

To enable Archive Live video on Instagram:

  • Open the Instagram mobile app, tap the Plus icon, choose Live, then tap the cog icon in the top right.

  • Click Live, and toggle the archive button to blue.


You can access archived videos only in the Instagram mobile app.

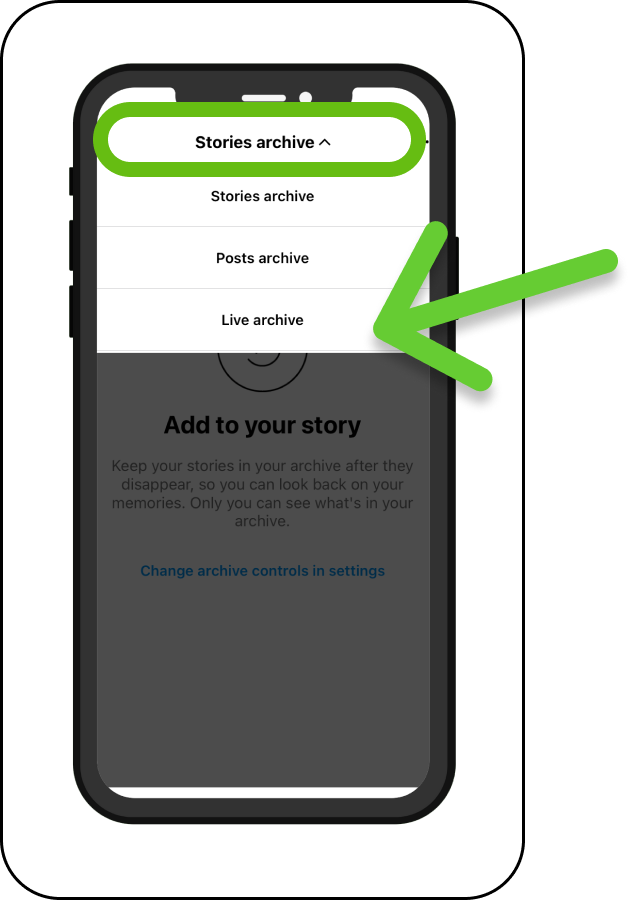

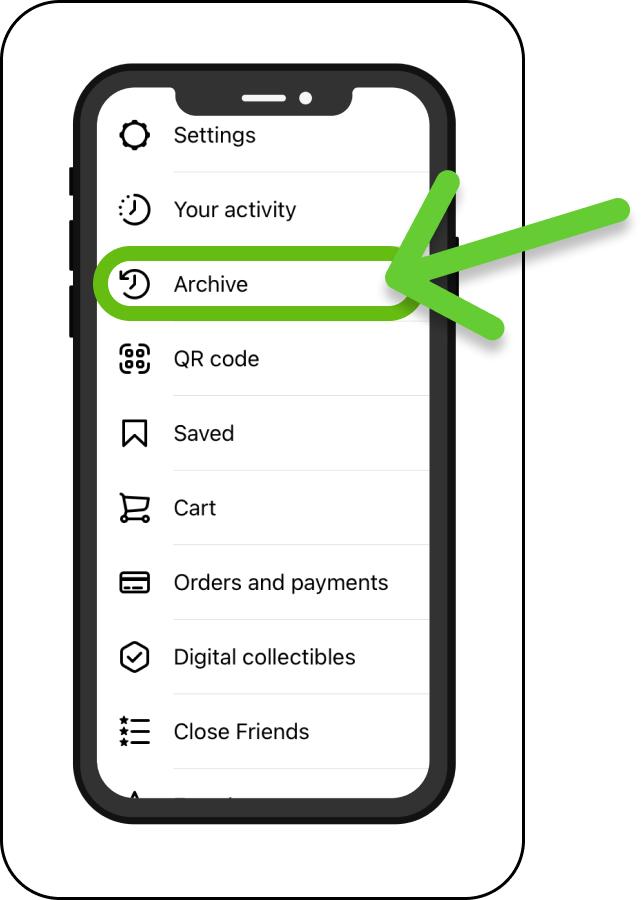

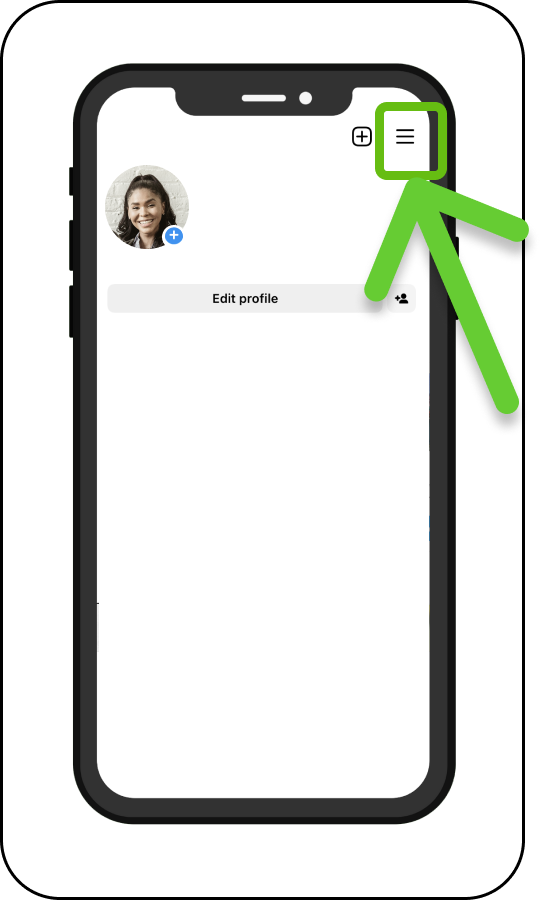

Click the three horizontal buttons on the top right.


Select the Archive option.


Click on the top to open the archive menu.

Select Live video to view archived live video.



Recommended Settings for Instagram Live Producer

Video format:

  • 9x16 aspect ratio (recommended but not required)

  • 720p @ 30 fps (note: 30 fps is recommended, but Live Producer can also support 60 fps if desired. When using 60 fps, the Live Producer preview screen will still display 30 fps).

  • Resolution: 720 x 1280

  • Video bitrate range: 2,250–6,000 Kbps

  • Alternatives (supported but not recommended): 480p @ 30 fps, 360p

Audio format:The settings below are the default for most streaming platforms, including OBS:

  • Sample rate: 44.1 KHz

  • Channel layout: Stereo

  • Bit rate: up to 256 Kbps

Check out the Instagram Blog to learn more about the Instagram Live Producer.

Good Luck!
